🚀 Elevate your server game with ultra-reliable, high-speed SAS connectivity!

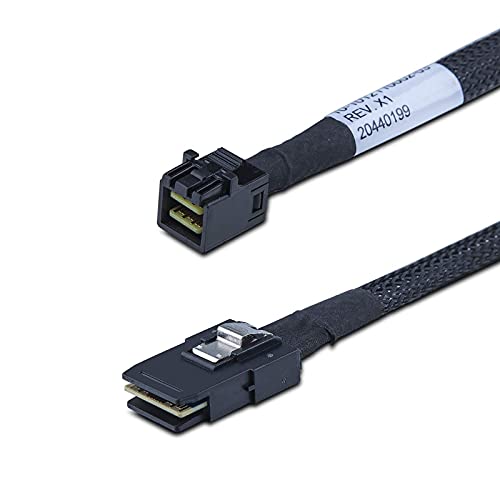

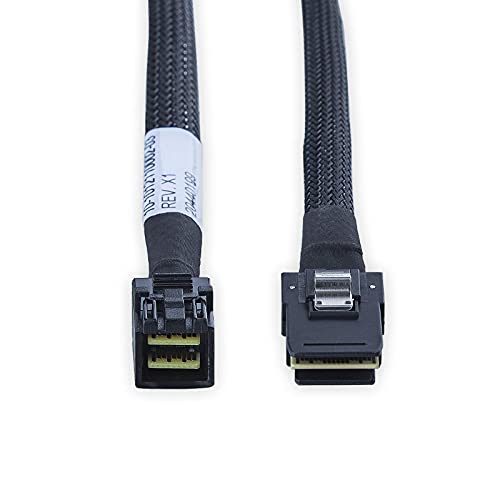

The 10Gtek SFF-8643 to SFF-8087 Mini SAS HD Cable delivers blazing 12Gb/s SAS 3.0 data transfer with backward compatibility to SAS 2.0. Built with 30 AWG silver-plated copper wiring and 100Ω impedance, it ensures minimal signal loss and EMI for stable RAID and multi-disk operations. Its compact 0.3m length and impact-resistant housing with a stainless steel lock make it ideal for professional server and storage setups, supporting major RAID controllers like LSI, Dell, and HP.
| ASIN | B0B6VBVDBJ |
| Are batteries included? | No |
| Best Sellers Rank | #253,351 in Computers & Accessories ( See Top 100 in Computers & Accessories ) #65 in SAS Cables |
| Brand | 10Gtek |
| Cable Type | Internal Mini SAS HD Cable |
| Colour | 1PC |
| Compatible Devices | Server, Storage |
| Compatible Phone Models | No Compatible Phone Models |
| Connectivity Technology | mini SAS |
| Connector Gender | Male-to-Male |

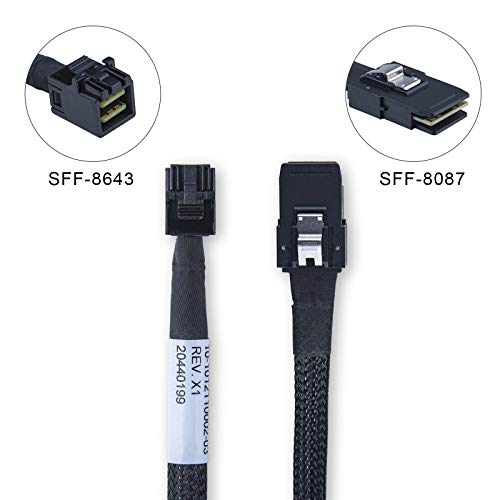

| Connector Type | Sff-8643 to Sff-8087 |
| Customer Package Type | rigid box |
| Customer Reviews | 4.6 4.6 out of 5 stars (71) |
| Data Transfer Rate | 6 Gigabits Per Second |
| Date First Available | 10 August 2022 |
| Frequency | 6 GHz |
| Indoor/Outdoor Usage | Outdoor |
| Item Weight | 141 g |
| Item model number | CB-001 |
| Manufacturer | 10Gtek |
| Model Name | CB-001 |
| Model number | CB-001 |
| Net Quantity | 1.0 Count |
| Number of Items | 1 |
| Number of Pins | 8 |
| Outer Material | Other |
| Package Dimensions | 22 x 21.11 x 1.9 cm; 141 g |
| Recommended Uses For Product | Internal data transfer in servers and storage systems |
| Shape | Round |
| Special Feature | Data Transfer |
| Specification Met | Sas |
C**E
Utilisé pour relier un sas expander pour relier 20 hdd et ssd. Parfait et très bon prix !
J**F
This cable worked great in my TrueNAS build that included a SuperMicro SAS adapter. I selected this specific cable to extend past the 4 drives attached to the original cable and accommodate a lace of SATA/SAS power connectors. All of my SAS SSD and HDD were recognized at startup.
P**E
La utilice para conectar una LSI logic 9364-8I MegaRAID Controller Card SAS
T**R
These have worked flawlessly
P**J
I was getting into the habit of switching to shorter cables found off amazon, since I didn't want the normal super long 1 meter sas cables in my Fractal Design Meshify 2 XL case. Only problem was that after two-three months I would start getting the dreaded Smart Error 199 (UDMA CRC error count). So, I started looking for short cables from reputable manufacturers. These .5m cables are a little long still, but no one reputable sells a .3m version. The wire thickness seems to be the same size as the cheap "blue wire" SAS cables; however, I haven't had any CRC errors since i got these cables. Also, if you are using shucked or enterprise drives, these use Molex power so it solves the 3.3v issue that you may face with cables using Sata power. Overall, this works perfect with my LSI 9400-16i HBA and my older LSI 9300-8i HBA.
