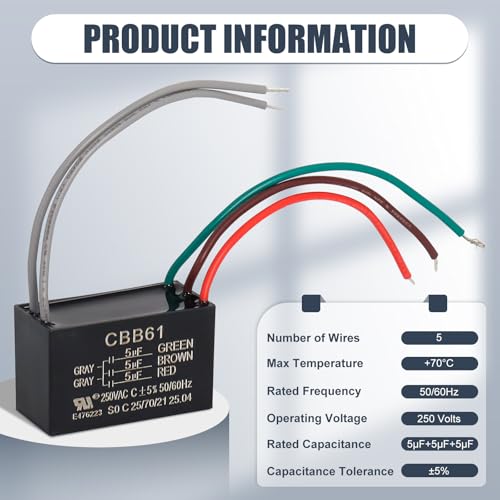

Wadoy CBB61 5 Wire Ceiling Fan Capacitor for NEW TECH 5+5+5uf 50/60Hz 250VAC

Lo compré para reparar uno de mis abanicos de techo (Hunter) y quedó muy bien, yo creo que cumple hasta ahora con su calidad, gracias y SI lo recomiendo

My Hunter ceiling fans would only run slow - originally they were 3 speed. I bought and installed 2 of these capacitors (in 2 separate fans), and now they have 3 speeds again. I took some time to figure out which wire went where since the colors were all different from the originals. I am not an electrician and who knows when they will mix up the colors again - so try at your own risk, but this is what worked for me. I noticed that 3 of the wires are "push in" style, and 2 are wire nut connection-style. The 3 "push-ins" go to the pull switch connectors (note, 2 of these wires are on one side of the capacitor and 1 on the other). Purple wire went where original green was (#3 slot on pull switch). Yellow went where original brown was (#2 slot on pull switch). The "push-in" orange went where original grey was (#1 slot on pull switch). Don't mess with the black wire on the pull switch, this is the Load wire and does not need to be changed. Now you must cut the remaining red and grey wires on the original capacitor. Then I connected with wire nuts red to red and orange to gray. Again, this worked with the colors I was sent - no guarantee you will get these colors or that this is technically correct - but it did work in both my fans. I can not speak to the longevity of these capacitors since I only just installed them. Good luck and stay cool.

El capacitor indica 5-5-5 mF, pero al medir con el multímetro, da lecturas diferentes 6-4-5 mF, muy mala calidad de fabricación, no recomiendo a este vendedor.

Easy to install.

My 52 inch ceiling Farmington hunter fan is back working. This capacitor easily replaced CGE one
